案例1：检测温度、湿度、光感等

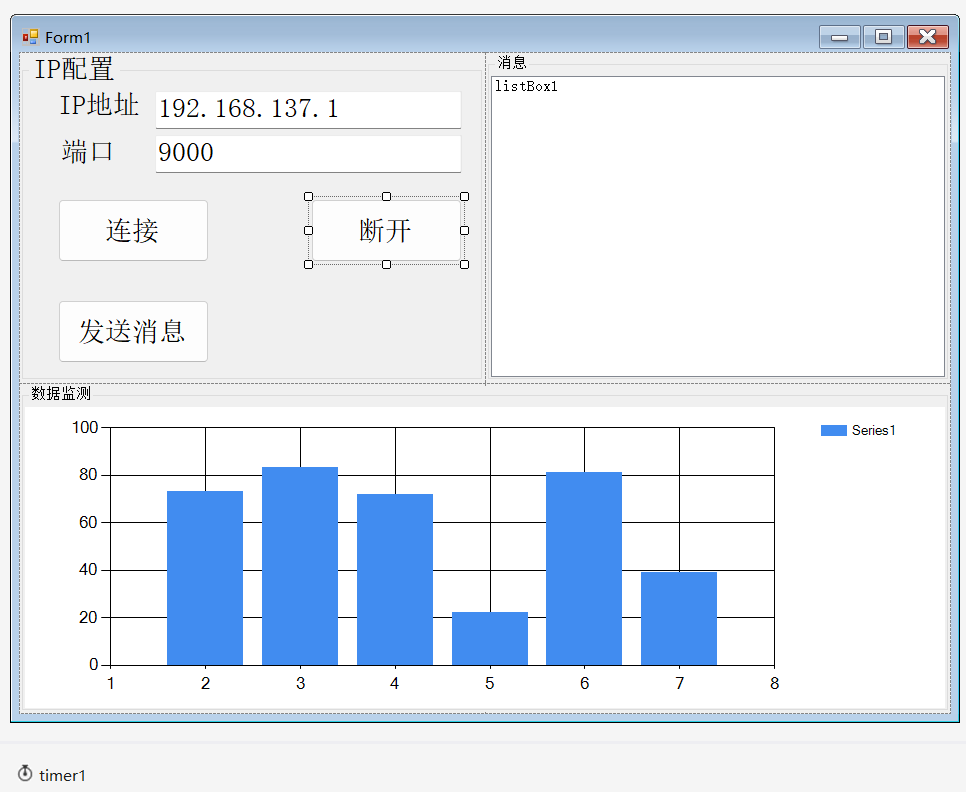

# 效果图
![](/media/202508/2025-08-21_133143_1389410.0960075755295845.png)
# TCP工具类
```C#
using System;
using System.Collections.Generic;
using System.Linq;
using System.Net.Sockets;
using System.Net;
using System.Text;
using System.Threading;
using System.Threading.Tasks;

namespace 上位机项目.Tools
{
    public class TcpServerTool
    {
        #region 事件委托
        /// <summary>
        /// 执行操作消息变更
        /// </summary>
        public event EventHandler<string> ExecuteMessageChanged;
        /// <summary>
        /// 客户端个数变更
        /// </summary>
        public event EventHandler<string> ClientCountChanged;
        #endregion

#region 字段、属性
        private string _ip = "192.168.137.1";           //ip
        private int _port = 9000;                   //端口
        private string _ipPort = "192.168.137.1:9000";  //
        private bool _isConnected = false;          //是否连接
        private bool _isListened = false;           //是否侦听
        private NetworkStream _stream;              //网络基础流
        private Socket _serverSocket;               //服务端套接字对象
        private Thread listenThread = null;         //侦听线程
        private List<string> _clientIpPortList = new List<string>();   //客户端Ip端口集合
        private List<Socket> _clientSocketList = new List<Socket>();    //客户端套接字对象集合
        private List<Thread> _clientSocketThreadList = new List<Thread>(); //接收线程：接收客户端对象集合

public string IP { get => _ip; set => _ip = value; }
        public int Port { get => _port; set => _port = value; }
        public bool IsConnected { get => _isConnected; set => _isConnected = value; }
        public bool IsListened { get => _isListened; set => _isListened = value; }
        public NetworkStream Stream { get => _stream; set => _stream = value; }
        public Socket ServerSocket { get => _serverSocket; set => _serverSocket = value; }
        public List<string> ClientIpPortList { get => _clientIpPortList; set => _clientIpPortList = value; }
        public List<Socket> ClientSocketList { get => _clientSocketList; set => _clientSocketList = value; }
        public List<Thread> ClientSocketThreadList { get => _clientSocketThreadList; set => _clientSocketThreadList = value; }
        public string IpPort { get => _ipPort; set => _ipPort = value; }
        #endregion

#region 构造方法
        public TcpServerTool(string ip, int port)
        {
            this.IP = ip;
            this.Port = port;
        }
        public TcpServerTool(string ip, string port)
        {
            this.IP = ip;
            if (int.TryParse(port, out int portStr))
            {
                this.Port = portStr;
            }
        }
        #endregion

/// <summary>
        /// 断开连接
        /// </summary>
        public void Disconnect()
        {
            //状态
            IsListened = false;
            IsConnected = false;

foreach (Thread item in ClientSocketThreadList)
            {
                item.Abort();
            }
            //关闭对象集合，清除集合项
            foreach (Socket item in ClientSocketList)
            {
                item.Close();
            }

//关闭线程
            listenThread?.Abort();
            listenThread = null;

//关闭流
            Stream?.Close();
            ServerSocket?.Close();
            ServerSocket = null;
            Stream = null;

ClientSocketThreadList?.Clear();
            ClientSocketList?.Clear();
            ClientIpPortList?.Clear();
        }
        /// <summary>
        /// 服务端打开
        /// </summary>
        public void Open()
        {
            try
            {
                IPAddress ipAddress = IPAddress.Parse(IP);  //IP地址
                // 创建一个新的 Socket 对象，指定为 IPv4、面向流的（TCP）协议
                ServerSocket = new Socket(AddressFamily.InterNetwork, SocketType.Stream, ProtocolType.Tcp);
                //允许套接字复用
                ServerSocket.SetSocketOption(SocketOptionLevel.Socket, SocketOptionName.ReuseAddress, true);
                // 服务器绑定指定终端（IP,Port）
                IPEndPoint localEndPoint = new IPEndPoint(ipAddress, Port);//创建终端
                ServerSocket.Bind(localEndPoint);   //绑定终端

ExecuteMessageChanged?.Invoke(this, $"开始侦听准备...");
                ServerSocket.Listen(10);
                //创建并使用线程侦听
                listenThread = new Thread(OnListenClient);
                listenThread.IsBackground = true;
                listenThread.Start();
                IsListened = true;

ExecuteMessageChanged?.Invoke(this, $"本地终端：{ServerSocket.LocalEndPoint}");
                ExecuteMessageChanged?.Invoke(this, $"协议：{ServerSocket.LocalEndPoint.AddressFamily}");
                ExecuteMessageChanged?.Invoke(this, $"准备完成，开始侦听客户端连接...");

}
            catch (Exception ex)
            {
                ExecuteMessageChanged?.Invoke(this, $"创建连接失败....");
                ExecuteMessageChanged?.Invoke(this, $"{ex.Message}");
            }
        }

/// <summary>
        /// 侦听客户端
        /// </summary>
        public void OnListenClient()
        {
            try
            {
                while (true)
                {
                    //接受一个客户端的连接请求
                    Socket socket = ServerSocket.Accept();
                    ExecuteMessageChanged?.Invoke(this, $"收到来自【{socket.LocalEndPoint}】远程终端的连接请求...");
                    // 发送消息给客户端
                    string sendTestData = "Test Connect...";
                    ExecuteMessageChanged?.Invoke(this, $"尝试发送数据：{sendTestData}");
                    Send(socket, sendTestData);

//创建接收数据线程
                    Thread thread = new Thread(Received);
                    thread.Name = (ClientSocketThreadList.Count + 1) + "";
                    thread.IsBackground = true;
                    thread.Start(socket);

//添加对象到集合
                    ClientIpPortList.Add(socket.RemoteEndPoint.ToString());  //添加远程终端到集合
                    ClientSocketList.Add(socket);                                   //添加Socket对现象到集合
                    ClientSocketThreadList.Add(thread);                             //创建对应的客户端Socket线程对象并添加到集合

//触发客户端个数变更事件
                    ClientCountChanged?.Invoke("Add", socket.RemoteEndPoint.ToString());
                }
            }
            catch (Exception ex)
            {
                ExecuteMessageChanged?.Invoke(this, $"侦听异常：{ex.Message}");
            }
        }
        /// <summary>
        /// 接收数据方法
        /// </summary>
        public void Received(object socketClientPara)
        {
            Socket socketServer = socketClientPara as Socket;
            string remoteEndPoint = socketServer.RemoteEndPoint.ToString(); ;
            while (true)
            {
                try
                {
                    // 读取客户端发送的数据
                    byte[] buffer = new byte[1024 * 1024];
                    if (socketServer == null) break;
                    // 接收客户端发来的数据
                    int dataLength = socketServer.Receive(buffer);
                    // 将接收的数据转换为字符串并输出
                    string dataReceived = Encoding.ASCII.GetString(buffer, 0, dataLength);
                    ExecuteMessageChanged.Invoke(this, $"{dataReceived}");
                }
                catch (Exception ex)
                {
                    if (IsListened)
                    {
                        ClientIpPortList.Remove(remoteEndPoint);
                        ClientCountChanged?.Invoke("Remove", remoteEndPoint);
                        Stream = null;
                        ExecuteMessageChanged.Invoke(this, "客户端已断开连接！");
                        ExecuteMessageChanged.Invoke(this, $"接收异常：{ex.Message}");

ClientSocketList.Find(s => s.RemoteEndPoint.Equals(remoteEndPoint))?.Close();
                        ClientSocketList.Remove(socketServer);
                        break;
                    }
                }
            }
        }

/// <summary>
        /// 发送数据：根据指定IpPort,
        /// </summary>
        public void Send(string ipPort, string data)
        {
            try
            {
                if (IsListened)
                {
                    string socketIpPort = ClientIpPortList.Find(s => s.Equals(ipPort));
                    Socket socket = ClientSocketList.Find(s => s.RemoteEndPoint.ToString().Equals(ipPort));
                    if (socket != null)
                    {
                        Stream = new NetworkStream(socket);
                        string dataToSend = data;
                        byte[] dataBytes = Encoding.UTF8.GetBytes(dataToSend);
                        Stream.Write(dataBytes, 0, dataBytes.Length);
                        ExecuteMessageChanged?.Invoke(this, $"发送数据长度：{dataBytes.Length}");
                    }
                    else
                    {
                        ExecuteMessageChanged?.Invoke(this, $"发送失败！socket = null");
                    }
                }
            }
            catch (Exception ex)
            {
                ExecuteMessageChanged?.Invoke(this, $"发送异常：{ex.Message}");
            }
        }
        /// <summary>
        /// 发送数据：根据指定Socket对象
        /// </summary>
        public void Send(Socket socket, string data)
        {
            try
            {
                if (IsListened)
                {
                    if (Stream != null)
                    {
                        string dataToSend = data;
                        byte[] dataBytes = Encoding.UTF8.GetBytes(dataToSend);
                        Stream.Write(dataBytes, 0, dataBytes.Length);
                        ExecuteMessageChanged?.Invoke(this, $"发送数据长度：{dataBytes.Length}");
                    }
                    else
                    {
                        Stream = new NetworkStream(socket);
                        string dataToSend = data;
                        byte[] dataBytes = Encoding.UTF8.GetBytes(dataToSend);
                        Stream.Write(dataBytes, 0, dataBytes.Length);
                        ExecuteMessageChanged?.Invoke(this, $"发送数据长度：{dataBytes.Length}");
                    }
                }
            }
            catch (Exception ex)
            {
                ExecuteMessageChanged?.Invoke(this, $"发送异常：{ex.Message}");
            }
        }

/// <summary>
        /// 群发数据:发送数据到所有在连接客户端。
        /// </summary>
        /// <param name="data"></param>
        public void SendGroup(string data)
        {
            try
            {
                if (IsListened)
                {
                    foreach (Socket socket in ClientSocketList)
                    {
                        Stream = new NetworkStream(socket);
                        string dataToSend = data;
                        byte[] dataBytes = Encoding.UTF8.GetBytes(dataToSend);
                        Stream.Write(dataBytes, 0, dataBytes.Length);
                        ExecuteMessageChanged.Invoke(this, $"发送到终端：{socket.RemoteEndPoint}");
                        ExecuteMessageChanged.Invoke(this, $"协议版本：{socket.RemoteEndPoint.AddressFamily}");
                        ExecuteMessageChanged.Invoke(this, $"发送数据长度：{dataBytes.Length}");
                    }
                }
            }
            catch (Exception ex)
            {
                ExecuteMessageChanged.Invoke(this, $"发送异常：{ex.Message}");
            }
        }
    }
}
```

# 模型类
```C#
using System;
using System.Collections.Generic;
using System.IO;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using LitJson;
namespace 上位机项目.Models
{
    internal class DataM
    {
        public double? Temperature { get; set; }
        public double? Humidity { get; set; }
        public int? LightPerception { get; set; }
        public string other { get; set; }

public string ToJson()
        {
            return JsonMapper.ToJson(this);
        }

public bool SaveJson()
        {
            string json = ToJson();
            File.WriteAllText("test.json", json);
            return true;
        }
    }
}
```

# 源码
```C#
using LitJson;
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.IO;
using System.Linq;
using System.Net;
using System.Net.Sockets;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
using System.Windows.Forms.DataVisualization.Charting;
using 上位机项目.Models;
using 上位机项目.Tools;

namespace 上位机项目
{
    public partial class Form1 : Form
    {
        public Form1()
        {
            InitializeComponent();

//表格制作初始化
            chart1.ChartAreas.Add(new ChartArea());
            chart1.Series.Add("温度");
            chart1.Series["温度"].ChartType = SeriesChartType.Line;
            chart1.Series["温度"].IsVisibleInLegend = true; // 显示图例
            chart1.Series["温度"].IsValueShownAsLabel = true;//显示数据标签

chart1.Series.Add("湿度");
            chart1.Series["湿度"].ChartType = SeriesChartType.Line;
            chart1.Series["湿度"].IsVisibleInLegend = true; // 显示图例
            chart1.Series["湿度"].IsValueShownAsLabel = true;//显示数据标签

chart1.Series.Add("光感");
            chart1.Series["光感"].ChartType = SeriesChartType.Line;
            chart1.Series["光感"].IsVisibleInLegend = true; // 显示图例
            chart1.Series["光感"].IsValueShownAsLabel = true;//显示数据标签

chart1.Series.Add("其它");
            chart1.Series["其它"].ChartType = SeriesChartType.Line;
            chart1.Series["其它"].IsVisibleInLegend = true; // 显示图例
            chart1.Series["其它"].IsValueShownAsLabel = true;//显示数据标签
            listBox1.Items.Add("初始化成功");
        }
        TcpServerTool tst = null;
        private void button1_Click(object sender, EventArgs e)
        {
            tst = new TcpServerTool(textBox1.Text, textBox2.Text);
            tst.ExecuteMessageChanged += ExcuteMessageChanged;
            tst.ClientCountChanged += ClientCountChanged;
            tst.Open();
            timer1.Enabled = true;
            listBox1.Items.Add("开启成功");
        }

private void ClientCountChanged(object sender, string e)
        {
        }

private void ExcuteMessageChanged(object sender, string e)
        {
            try
            {
                DataM dm = JsonMapper.ToObject<DataM>(e);
                AddDataPoint(dm);
                Action ac = () =>
                {
                    listBox1.Items.Add($"发送数据成功：{dm.ToJson()}");
                    listBox1.TopIndex = listBox1.Items.Count - 1;
                };
                listBox1.Invoke(ac);
            }
            catch (Exception ex)
            {
                Action ac = () =>
                {
                    listBox1.Items.Add($"解析数据错误：{ex.Message}");
                    listBox1.TopIndex = listBox1.Items.Count - 1;
                };
                listBox1.Invoke(ac);
            }
        }

private void button2_Click(object sender, EventArgs e)
        {
            tst.ExecuteMessageChanged -= ExcuteMessageChanged;
            tst.ClientCountChanged -= ClientCountChanged;
            tst?.Disconnect();
            tst = null;
            timer1.Enabled = false;
            listBox1.Items.Add("断开成功");
            listBox1.TopIndex = listBox1.Items.Count - 1;
        }

private void button3_Click(object sender, EventArgs e)
        {
            tst.SendGroup(new DataM().ToJson());
            listBox1.Items.Add("发送数据");
            listBox1.TopIndex = listBox1.Items.Count - 1;
        }

private void button4_Click(object sender, EventArgs e)
        {
        }

private void AddDataPoint(DataM dm)
        {
            Action ac = () =>
            {
                chart1.Titles.Clear();
                int number = chart1.Series["温度"].Points.Count; // 使用当前点的数量作为X值（递增）

string x = DateTime.Now.ToString();
                double? y = dm.Temperature; // 获取下一个Y值，这里需要你自己的逻辑来生成这个值,温度
                double? y1 = dm.Humidity;//湿度
                int? y2 = dm.LightPerception;//光感
                string y3 = dm.other;

chart1.Series["温度"].Points.AddXY(x, y); //添加数据点
                chart1.Series["湿度"].Points.AddXY(x, y1);
                chart1.Series["光感"].Points.AddXY(x, y2);
                chart1.Series["其它"].Points.AddXY(x, y3);
                                                               // 设置标题和轴标签
                chart1.Titles.Add("环境监测趋势图");
                chart1.ChartAreas[0].AxisX.Title = "时间";
                chart1.ChartAreas[0].AxisY.Title = "数值";
                chart1.ChartAreas[0].AxisY.Interval = 50; // 间隔

if (chart1.Series["温度"].Points.Count > 10)
                {
                    chart1.Series["温度"].Points.RemoveAt(0);
                    chart1.Series["湿度"].Points.RemoveAt(0);
                    chart1.Series["光感"].Points.RemoveAt(0);
                    chart1.Series["其它"].Points.RemoveAt(0);
                }

};

chart1.Invoke(ac);
        }

private void timer1_Tick(object sender, EventArgs e)
        {
            tst.SendGroup(new DataM().ToJson());
        }
    }
}
```

# 另一个TCP工具类
```C#
using System;
using System.Collections.Generic;
using System.Linq;
using System.Net.Sockets;
using System.Net;
using System.Text;
using System.Threading;
using System.Threading.Tasks;
using LitJson;

namespace 上位机项目.Tools
{
    public class TcpServerTool
    {
        private TcpListener _listener;
        private bool _isRunning;
        private readonly List<TcpClient> _clients = new List<TcpClient>();
        private readonly int _port;

public event Action<string> OnMessageReceived;
        public event Action<TcpClient> OnClientConnected;
        public event Action<TcpClient> OnClientDisconnected;

public TcpServerTool(int port)
        {
            _port = port;
        }

public void Start()
        {
            _listener = new TcpListener(IPAddress.Any, _port);
            _listener.Start();
            _isRunning = true;
            Console.WriteLine($"Server started on port {_port}");

ThreadPool.QueueUserWorkItem(HandleConnections);
        }

private void HandleConnections(object state)
        {
            while (_isRunning)
            {
                try
                {
                    TcpClient client = _listener.AcceptTcpClient();
                    lock (_clients)
                    {
                        _clients.Add(client);
                    }
                    OnClientConnected?.Invoke(client);
                    ThreadPool.QueueUserWorkItem(HandleClientCommunication, client);
                }
                catch (SocketException) { /* Server stopped */ }
            }
        }

private void HandleClientCommunication(object state)
        {
            TcpClient client = (TcpClient)state;
            NetworkStream stream = client.GetStream();
            byte[] buffer = new byte[1024];

try
            {
                while (_isRunning)
                {
                    int bytesRead = stream.Read(buffer, 0, buffer.Length);
                    if (bytesRead == 0) break;

string message = Encoding.UTF8.GetString(buffer, 0, bytesRead);
                    OnMessageReceived?.Invoke(message);
                }
            }
            catch (Exception) { /* Client disconnected */ }
            finally
            {
                lock (_clients)
                {
                    _clients.Remove(client);
                }
                client.Close();
                client = null;
                OnClientDisconnected?.Invoke(client);

}
        }

public void SendJson<T>(TcpClient client, T data)
        {
            string json = JsonMapper.ToJson(data);
            byte[] bytes = Encoding.UTF8.GetBytes(json);
            NetworkStream stream = client.GetStream();
            stream.Write(bytes, 0, bytes.Length);
        }

public void BroadcastJson<T>(T data)
        {
            lock (_clients)
            {
                foreach (var client in _clients)
                {
                    SendJson(client, data);
                }
            }
        }

public void Stop()
        {
            _isRunning = false;
            _listener.Stop();
            lock (_clients)
            {
                foreach (var client in _clients)
                {
                    client.Close();
                }
                _clients.Clear();
            }
            Console.WriteLine("Server stopped");
        }
    }
}
```

# 工具类用法
```C#
TcpServerTool server = null;
private void button1_Click(object sender, EventArgs e)
{

server = new TcpServerTool(9000);
    server.OnClientConnected += client =>
    {
        Console.WriteLine($"Client connected: {client.Client.RemoteEndPoint}");
    };

server.OnMessageReceived += message =>
    {
        try
        {
            DataM dm = JsonMapper.ToObject<DataM>(message);
            AddDataPoint(dm);
            Action ac = () =>
            {
                listBox1.Items.Add($"发送数据成功：{dm.ToJson()}");
                listBox1.TopIndex = listBox1.Items.Count - 1;
            };
            listBox1.Invoke(ac);
        }
        catch (Exception ex)
        {
            Action ac = () =>
            {
                listBox1.Items.Add($"解析数据错误：{ex.Message}");
                listBox1.TopIndex = listBox1.Items.Count - 1;
            };
            listBox1.Invoke(ac);
        }
    };

server.OnClientDisconnected += client =>
    {
        if(client != null)
        {
            Console.WriteLine($"Client disconnected: {client.Client.RemoteEndPoint}");

}
    };
    server.Start();

timer1.Enabled = true;
    listBox1.Items.Add("开启成功");
}

private void timer1_Tick(object sender, EventArgs e)
{
    server.BroadcastJson(new DataM());
}
```
